Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tên sản phẩm: | Máy kiểm tra thủy lực servo với hoạt động kiểm tra được điều khiển bằng máy tính và hiển thị dữ liệu | Người mẫu: | WAW-300D |
|---|---|---|---|
| Kết cấu: | 6 cột | Cách kiểm soát: | hướng dẫn sử dụng và điện-thủy lực servo |
| Tải trọng tối đa: | 300kn | Max. tối đa. tension test space không gian kiểm tra căng thẳng: | 700 (có thể tùy chỉnh) |
| Không gian thử nghiệm nén tối đa: | 600mm (có thể tùy chỉnh) | Phạm vi tải: | 1%-100%FS |
| Làm nổi bật: | computer controlled servo hydraulic testing machine,servo hydraulic testing machine with real time data,accurate material analysis testing machine |
||
The ISO-Compliant Servo Hydraulic Testing Machine for Stranded Steel Wire Tensile Testing boasts broad applicability, supporting tensile, compression, bending, shear, peel, and other mechanical property tests on metal, non-metallic, and composite materials.
Both test operation and data processing fully comply with GB/T 228-2010 Metallic materials - Tensile testing at ambient temperature--ensuring test results are accurate, reliable, and compliant with national technical standards.

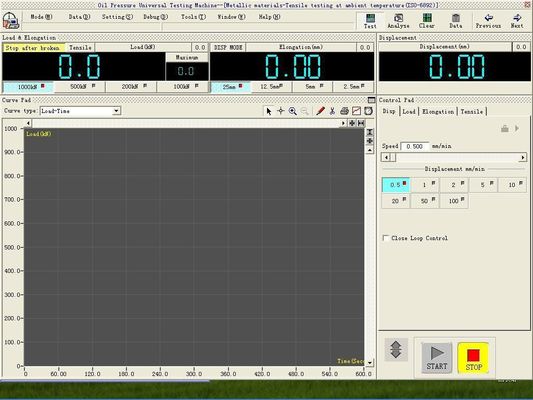

The entire test process is fully automated via computer control, featuring real-time test data visualization, automatic generation of multiple test curves (e.g., stress-strain curves) and comprehensive test reports, as well as secure data storage and on-demand print functionality.
This high-performance testing equipment is extensively utilized across key sectors including metallurgy, construction, light industry, aviation, aerospace, materials science, universities, and scientific research institutions--serving as a core tool for material qualification, product quality control, and R&D innovation.
We have significantly intensified in-house R&D initiatives, established a dedicated machining center, and independently manufactures core components. This vertical integration enables cost optimization across supply chain links without compromising product quality.
Our high-quality testing equipment delivers greater long-term cost savings compared to low-cost, inferior-quality alternatives. By minimizing equipment failure rates, we not only reduce our clients' maintenance expenses but also enhance operational efficiency--ensuring uninterrupted testing workflows.
This optimal quality-to-cost ratio delivers tangible, sustainable value to our clients, balancing reliable performance with economic benefits.
ISO 6892, ISO 6934 BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
ASTMA370, ASTME4, ASTME8, ASTME9, ASTMA615, ISO6892, ISO7438, ISO7500-1, ISO 15630 ISO 6934, EN10002-4, GB/T228-2002, GB 16491-2008, HGT3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849- 2008, GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.

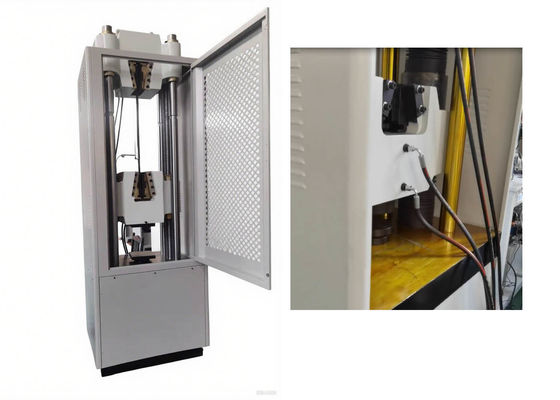

The Microcomputer-Controlled Electro-Hydraulic Servo Universal Testing Machine integrates automatic control, precision measurement, data acquisition, real-time on-screen display, and test result analysis in one integrated system. It adopts an under-cylinder main engine as the core platform, equipped with a high-precision oil pump and PC-based servo controller--enabling multi-channel closed-loop control to fully automate the test process, including automatic control and precision measurement functions.
Key product features include strong technical professionalism, high operational reliability, and easy upgradability. Its functionality can be continuously enriched and optimized in line with the advancement of testing machine measurement and control technology and updates to international/national test standards, ensuring long-term compatibility with evolving industry requirements.
| Model | WAW-300D |
|---|---|
| Max. test force(kN) | 300KN |
| Structure | Four columns two ball screws, oil cylinder down-setting type |
| Load range | 1%-100% |
| Middle Beam elevating speed (mm/min) | 250 mm/min |
| Max. Tensile space (mm) | 700mm |
| Max. Compression space (mm) | 600mm |
| Piston stroke(mm) | 200mm |
| Stranded wire clamping range | Φ4-32mm |
| Power total | 2.2KW |
| Compression plate size | Φ160mm |
| Bending support roller distance | 300mm |
A1: We operate as an Integrated Manufacturing & Trading Enterprise--with 18 years of dedicated focus on the testing instruments sector and 14 years of export experience. Our vertically integrated model combines in-house production capabilities with global trade services to deliver cost-effective, high-quality solutions.
A2: Our professional technical team will provide tailored recommendations once you share your specific testing requirements, including test types, applicable standards, sample specifications, and performance parameters. We leverage industry expertise to match you with the optimal equipment solution.
A3: In most cases, we maintain ready stock of standard models in our factory for immediate shipment. For non-stock items, the standard lead time is 15-20 working days after receipt of the advance payment. If you have urgent requirements, we can arrange priority production to shorten the delivery cycle--please inform us of your timeline for special coordination.
A4: Yes, we provide comprehensive customization services. In addition to our standard product range, we can develop customized testing instruments based on your unique technical requirements, application scenarios, or special test standards. We encourage you to share detailed specifications, and our R&D and engineering teams will strive to fulfill your customization demands.
